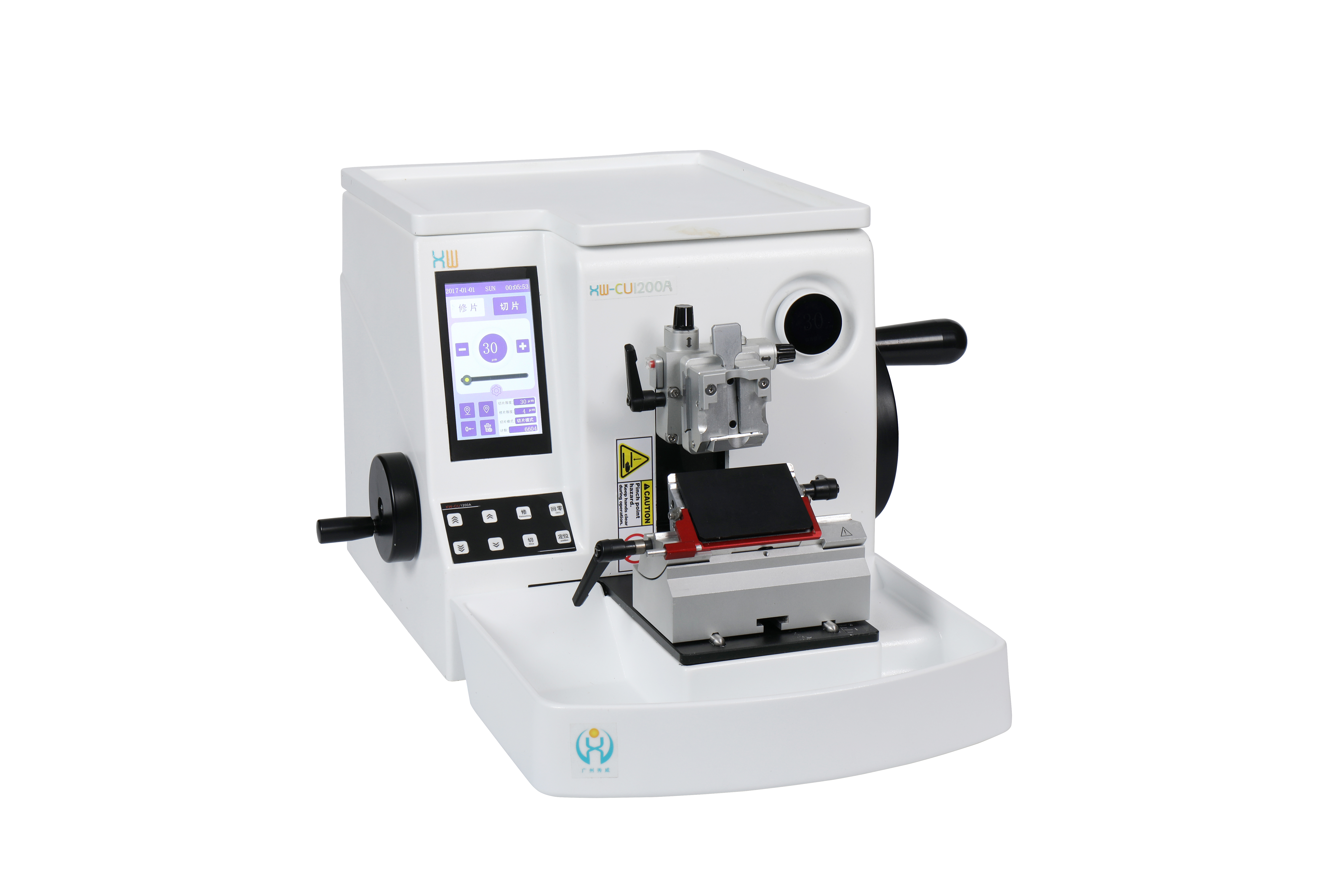

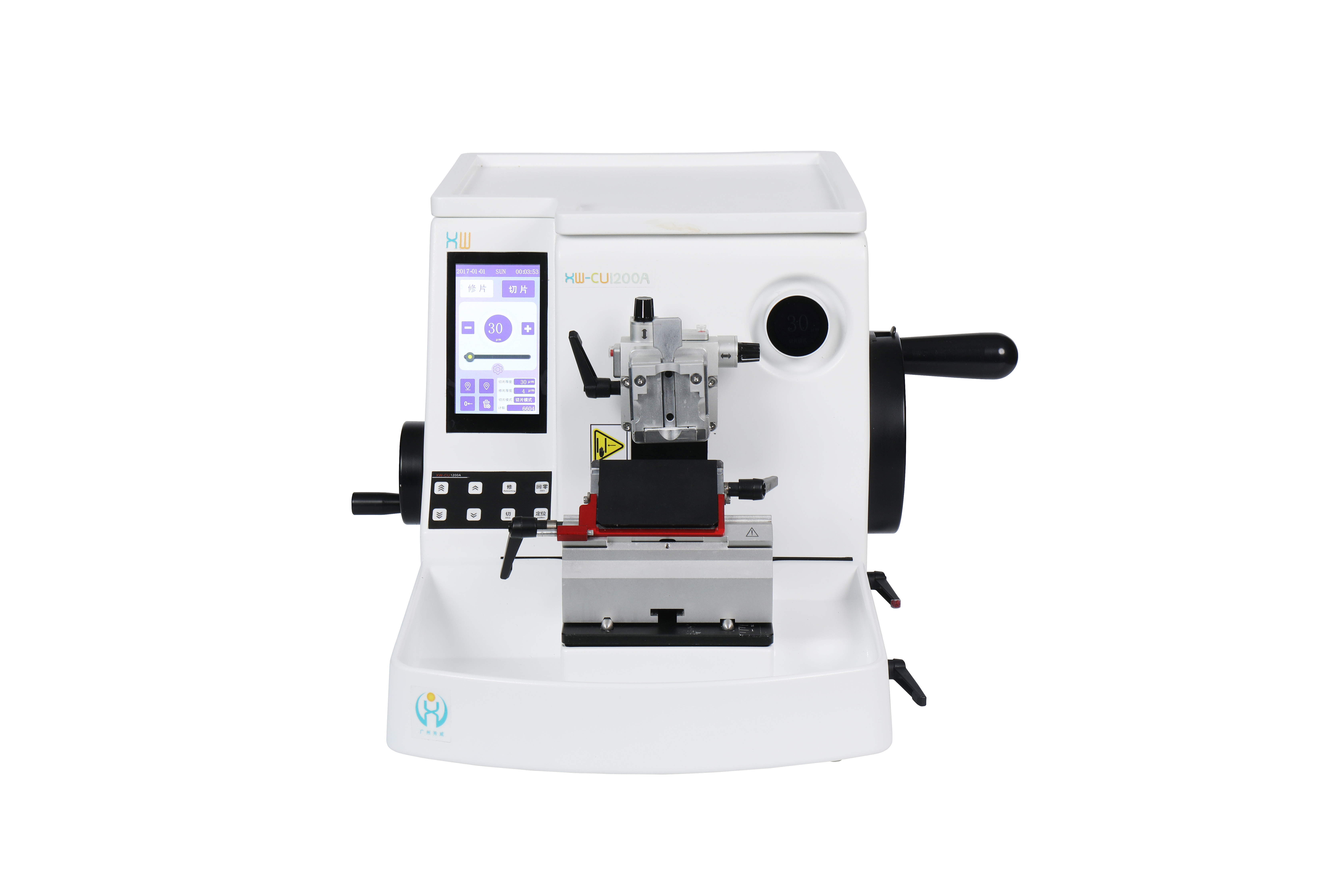

XW-CU1200A Semi-Automatic Rotary Paraffin Microtome

Meta Description

Guangzhou Xiuwei XW-CU1200A semi-automatic paraffin microtome delivers uniform ultra-thin tissue slices for pathology labs, medical universities, veterinary and scientific research. Dual-screen control, anti-static design, full CE certification, stable performance for hospital tender projects & global distributors.

Introduction

High-quality paraffin sectioning is the core foundation of pathological diagnosis, biomedical research and medical teaching. The XW-CU1200A semi-automatic rotary microtome developed by Guangzhou Xiuwei Technology is engineered to solve common pain points of traditional slicers: uneven slices, complicated operation, high maintenance cost and unstable operation in long-time continuous work.

Equipped with dual IPS touch control system, spring-balanced handwheel, anti-static waste chute and multi-position specimen chuck, this histology device meets the demands of public hospitals, private diagnostic labs, veterinary clinics, agricultural research institutes and medical schools worldwide. It has passed EU CE EMC certification, with complete technical documents to support global tender registration.

Core Competitive Advantages

1. Dual-Screen Intelligent Control System

• Main 5-inch HD IPS touch screen (720*1280, 16.7M colors) for one-key switch between trimming & section mode

• Auxiliary 1.54-inch adjustment screen for precise thickness fine-tuning, intuitive digital thickness display

• Custom auto sleep mode after handwheel lock, avoids accidental operation and protects lab staff safety

• Real-time display of slice count, specimen travel distance and equipment working status

2. Ultra-Stable Slicing Performance

• Spring balance handwheel structure (no counterweight block) ensures smooth rotation without vibration even for all-day continuous slicing

• Dual-guide rail knife holder with 3 lateral fixed points, eliminates wavy, curled or uneven tissue slices

• Wide thickness adjustment range: 0.2–100μm for routine sections; trimming range up to 600μm for fast rough cutting

• Adjustable specimen retraction (5–1000μm, switchable on/off) effectively prevents tissue compression damage

3. Humanized Lab-Friendly Design

• Large-capacity detachable anti-static waste tank (2L volume) avoids paraffin wax adhesion, greatly cuts daily cleaning time

• Magnetic top storage tray for brushes, scrapers and lab tools, saves limited bench space of small labs

• 360° hover lock handwheel + dual locking structure, safer when replacing blades and wax blocks

• 0° specimen head with ±8° horizontal & vertical rotation, supports large tissue blocks (506630mm) for animal & plant research

• 4 groups memory positioning function, improves slicing efficiency for mass sample testing

  4. Wide Application Scenarios

  1. Public General Hospitals & Geriatric Medical Centers: Low-maintenance design fits labs with insufficient service personnel

  2. Private Third-Party Pathology Labs: Durable structure for high-load 24-hour continuous work

  3. Medical Universities & Training Labs: Safe sleep mode prevents misoperation by student trainees

  4. Veterinary Hospitals & Livestock Stations: Wide thickness range adapts soft skin & hard cartilage animal tissues

  5. Agriculture & Environmental Research Institutes: Optional oversized chuck for plant & wildlife large specimens

  6. Regional Remote Clinics (Siberia, Northern Russia, CIS countries): Stable performance under low-temperature environment

  5. Complete Global Compliance Support

  • Full CE EMC certification compliant with EU medical equipment standards

  • Complete technical manuals, test reports and parameter comparison sheets in English & Russian for tender registration

  • Neutral export packaging & OEM private label service for regional distributors

  • Lifetime technical support, long-term spare parts supply and free software upgrade

  Complete Technical Parameters

  Display System

  • Main screen: 5.0” IPS HD, 720×1280, 16.7 million colors

  • Secondary adjustment screen: 1.54” IPS, 240×240, 262K colors

  Power & Environment

  • Rated input: AC 220V 50Hz, max power 40VA, IP20 protection

  • Working temperature: +10℃ ~ +30℃; Storage temperature: +5℃ ~ +50℃

  • Working altitude ≤2000m, anti-vibration & dust-proof structure

  Slicing Core Data

  • Section thickness: 0.2–100μm, multi-stage incremental adjustment

  • Trimming thickness: 3–600μm, adjustable step value

  • Vertical specimen travel: 70mm±1mm; Horizontal travel: 30mm±1mm

  • Specimen head rotation: ±8° horizontal, ±8° vertical

  • Coarse feed wheel clockwise/counterclockwise customizable

  Machine Dimension & Weight

  • Overall size: L565 × W520 × H320 mm

  • Waste chute capacity: 2L

  • Handwheel size: 115×153mm

  Standard Packing List

  1. XW-CU1200A Semi-Automatic Paraffin Microtome ×1

  2. Anti-static waste box ×1

  3. Three-core power cable ×1

  4. Multilingual operation manual ×1

  5. Equipment acceptance form ×2

  6. Factory packing list ×1

  7. Product certificate ×1

  After-Sales & Distributor Support

  1. Standard warranty from installation acceptance date, lifetime maintenance service beyond warranty period

  2. Professional engineer remote online training & on-site installation service by appointment

  3. Fast spare parts delivery for overseas dealers, no long waiting cycle

  4. Customized tender document package for Russia, EU and CIS public hospital bidding projects

  5. Exclusive distributor discount policy for bulk container orders, sample machine support for exhibition demonstration

  About Guangzhou Xiuwei Technology

  Guangzhou Xiuwei Technology focuses on independent R&D and manufacturing of full-series histology lab equipment, including paraffin microtomes, tissue processors and embedding stations. We build stable supply chains for pathology distributors, hospitals and research institutions across Europe, Russia, Central Asia and Southeast Asia.

  We provide one-stop product, document and after-sales solution for global histology equipment partners.
